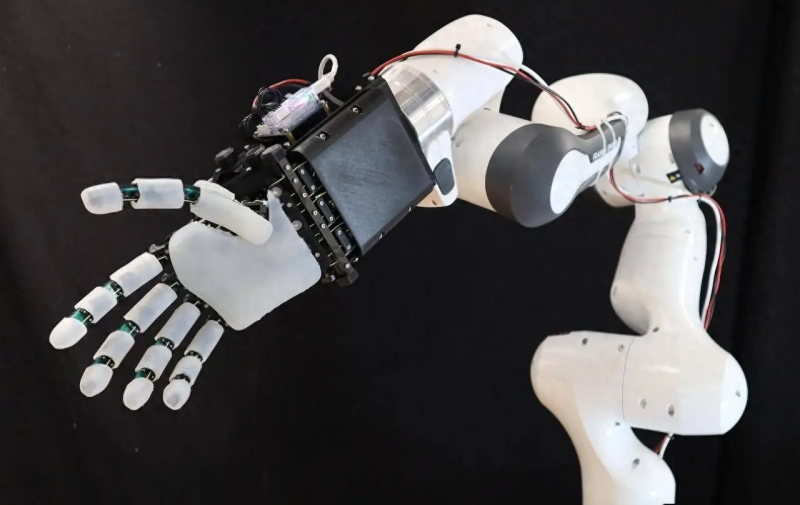

With a density of approximately one-sixth that of steel, along with self-lubricating properties and the potential to reduce noise, PEEK offers a compelling combination of properties for certain robotic joint applications. However, major load-bearing joints in the lower limbs are not necessarily where PEEK performs best.
PEEK (polyetheretherketone) is a semi-crystalline high-performance engineering thermoplastic with a long-term service temperature of approximately 240–260°C, depending on the specific grade and its TDS. When reinforced with carbon fiber (CF-PEEK), it can also offer an excellent strength-to-weight ratio.
The typical operating conditions of robotic joints—including high-frequency reciprocating motion, low-amplitude alternating loads, prolonged static loading, and low-vibration requirements—align well with PEEK's combination of properties.
So, how suitable is PEEK for robotic joint applications? The answer comes down to three key questions: Where does it fit? Where are its limits? And how far has the technology progressed?
Ultimately, material selection for robotic joints should be based on the load spectrum and operating conditions, rather than on density alone.
Neat PEEK has a density of approximately 1.30–1.32 g/cm³, around one-sixth that of steel (7.85 g/cm³) and about half that of aluminum alloys (2.70 g/cm³).
Carbon fiber-reinforced PEEK (CF-PEEK) typically has a density of approximately 1.44–1.55 g/cm³, depending on carbon fiber content, and remains significantly lighter than conventional metals.
CF-PEEK components used in robotic joint applications can achieve weight reductions of approximately 40–62% compared with aluminum alloy solutions, based on publicly disclosed manufacturer data.
The effect becomes particularly important toward the distal end of a robotic arm. Because rotational inertia is proportional to mass multiplied by the square of the distance from the rotation axis, reducing the weight of the wrist and dexterous hand can have a significant impact on overall robot dynamics.
PEEK typically has a dry coefficient of friction of approximately 0.2–0.4, depending on the counterface material and operating conditions. With additives such as PTFE and graphite, the coefficient of friction can be reduced to approximately 0.1–0.2, while the wear rate may decrease by one to two orders of magnitude, depending on the specific grade and test conditions.
These characteristics are particularly valuable in medical, semiconductor, and domestic service robotics, where cleanliness and maintenance requirements can be stringent.
However, PEEK also has limitations. Its maximum PV value is generally lower than that of metal sliding pairs, so areas exposed to extremely high contact stresses still require appropriate structural design and load management.
PEEK has higher viscoelastic damping than metals, allowing it to absorb part of the impact energy generated during gear meshing and thereby reduce vibration and noise.
Published studies and experimental data indicate that PEEK gear pairs can reduce noise by approximately 5–15 dB compared with steel gears of similar specifications. Actual results depend on gear geometry, module, load, and operating conditions.
This is particularly relevant to human–robot collaborative applications, where robots operate close to people and noise and vibration can be more noticeable.
One limitation needs to be clearly recognized: neat PEEK has only moderate creep resistance, and prolonged exposure to static loads can result in dimensional deformation.
Carbon fiber reinforcement can significantly reduce creep and improve dimensional stability. This is a key reason why CF-reinforced PEEK is generally preferred for load-bearing transmission components where long-term dimensional stability is critical.
With an appropriate material grade and structural design, components can maintain stable performance under prolonged loading and repeated start-stop conditions, helping keep gearbox backlash within the required assembly tolerance and minimizing positioning drift over the service life.
PEEK offers stable dielectric properties, is non-magnetic, and does not shield electromagnetic fields. These characteristics make it suitable for isolation bases and structural components around encoders, six-axis force/torque sensors, and other sensitive electronic components within robotic joints.
Medical-grade PEEK is also available with biocompatibility certifications and can withstand repeated high-temperature steam sterilization, making it suitable for selected surgical robot components and miniature robotic joints.
The interlaminar strength of CF-PEEK is influenced by fiber orientation, and its unnotched impact strength can be lower than that of alloy steels. Under high-torque and high-impact loading, typical failure modes may include tooth-root fracture and interlaminar delamination.
Neat PEEK has a thermal conductivity of approximately 0.25 W/(m·K), roughly 1/600 that of aluminum alloys. Carbon fiber reinforcement can improve thermal conductivity, but the increase remains limited, typically to around 1–5 W/(m·K), depending on fiber content and orientation.
Heat generated by motors and gearboxes is therefore difficult to dissipate through polymer structural components. In enclosed joint housings, heat accumulation can accelerate the aging of the material and surrounding components.
For heavy-duty, continuous operation, an effective thermal management path is essential, potentially incorporating metal frames, thermally conductive pads, or forced cooling.
High-performance modified PEEK resins are significantly more expensive than general-purpose engineering plastics, while carbon fiber-reinforced grades are even more costly. Precision gears and thin-wall components also have relatively narrow injection-molding processing windows and require more demanding tooling.
At the current stage, the overall cost of small-batch robotic joint modules can therefore be higher than that of comparable metal solutions.
As production volumes increase, costs may continue to decline. However, this should be regarded as a forward-looking trend rather than a current fact.
Neat PEEK has a coefficient of linear thermal expansion (CLTE) of approximately 47–60 × 10−6/K, around twice that of aluminum and about five times that of steel. Carbon fiber reinforcement can reduce thermal expansion, but the resulting value may still be higher than that of metals.
In environments with significant temperature variations, gear backlash and bearing preload can shift as the material expands or contracts. Precision transmission systems therefore require appropriate structural compensation, including clearance allocation and careful pairing of dissimilar materials.
The opportunity for PEEK is not necessarily to replace metals across the board, but to address applications where metals face limitations in weight reduction, low-noise operation, and maintenance-free performance.
Within its operating boundaries, PEEK can be a highly suitable material choice. Beyond those boundaries, metal remains the established solution for demanding load-bearing applications.
Humanoid robot wrist joints, forearm sections, dexterous-hand transmission components, end effectors, collaborative robot end-axis joints, and lightweight joints for medical, cleanroom, and service robots.
Heavy-duty primary joints can combine a metal load-bearing frame with PEEK gears, bushings, and damping components to balance mechanical strength and weight reduction.
Primary joints of heavy-duty industrial robots, equipment subjected to frequent high-impact loading, and major load-bearing joints in lower-limb robots operating under high torque.
CF-PEEK housings, flexspline-related components, retainers, and auxiliary gear rings can deliver weight reductions of more than 40%, while also providing benefits in vibration and noise reduction.
Some Chinese manufacturers have introduced high-PEEK-content lightweight robotic joint modules, achieving weight reductions of approximately 62% and progressing to on-robot testing.
Modified PEEK gears and bushings have entered volume production for some small, precision robotic systems, particularly where low weight, low friction, and dimensional stability are important.
PEEK is used in lightweight housings, end-stop brackets, isolation bushings, sensor insulation bases, and structural components for dexterous robotic fingers.
Micro-joints and components where non-magnetic properties and repeated sterilization resistance are important.
Semiconductor and biopharmaceutical applications requiring low particle generation and lubrication-free operation.
Applications requiring resistance to corrosion and demanding environmental conditions.
Material formulations are evolving toward multi-component systems combining carbon fiber, graphene, and lubricating fillers to achieve a better balance of impact resistance, fatigue resistance, and thermal conductivity.
Hybrid architectures combining metal inserts, PEEK transmission components, and dedicated thermal-management pathways are emerging as a practical approach for both lightweight and heavy-duty robotic joints.
Manufacturing technologies such as integrated injection molding and continuous-fiber 3D printing are expected to improve yield while reducing processing and assembly costs.
Testing standards covering fatigue performance, thermal cycling, and wear of PEEK-based robotic joint components are gradually being developed. Reliable and standardized testing methods will be an important prerequisite for large-scale production.
For primary load-bearing joints, a practical approach is to use metal for the main load-bearing structure, while incorporating PEEK for transmission components, bushings, and damping elements.
Full replacement with PEEK is generally not recommended for applications involving high torque, high impact loads, or continuous heavy-duty operation.
If used directly in such components, these limitations may eventually manifest as tooth-surface wear and backlash drift, potentially resulting in positioning and accuracy issues over extended operating periods.
Robotic joint applications require more than simply choosing a high-performance polymer. Material selection should consider the actual load spectrum, friction and wear, operating temperature, dimensional stability, thermal management, and processing method.
LFT-G provides PEEK and carbon fiber-reinforced PEEK compounds for demanding engineering applications. Tell us about your component, operating conditions, and performance requirements, and our technical team can help evaluate a suitable material solution.
